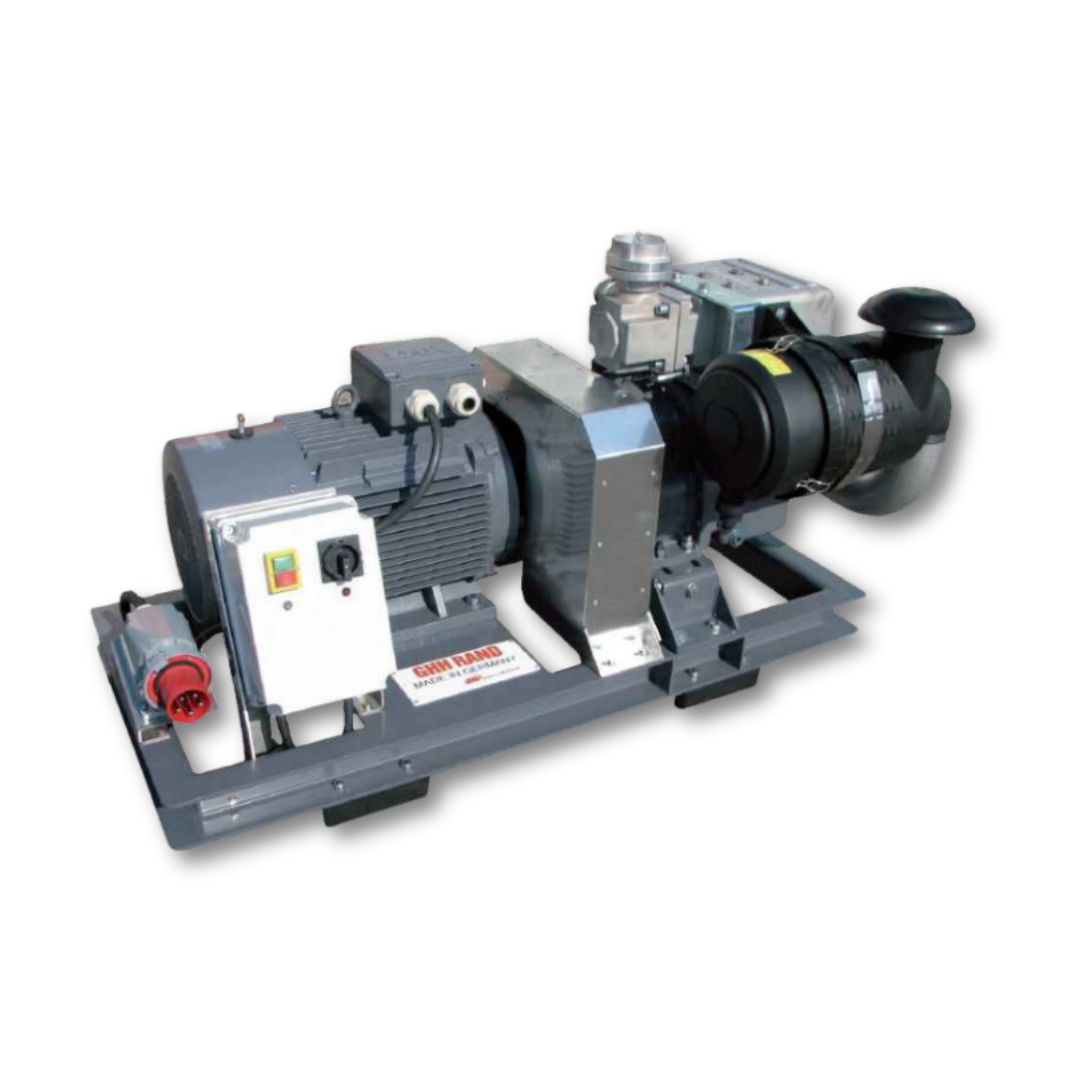

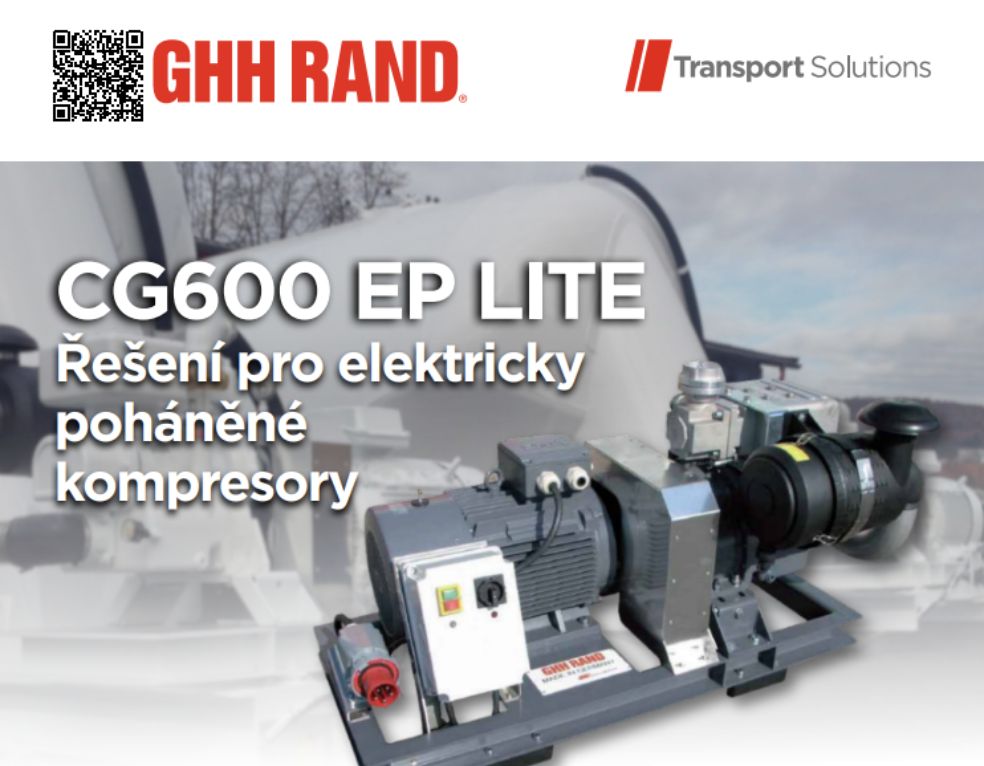

• GHH RAND® CG80 oil-free screw compressor
• Reactive concept discharge silencer preventing
infill material migration into your product
• Integrated Safety Pressure Relief Valve
+ Non-Return Check Valve
• Three-phase AC motor type B3:
30 kW / 380-400 V AC / Δ / 50 Hz / 2,1 bar
37 kW / 380-400 V AC / Δ / 50 Hz / 2,6 bar
37 kW / 380-400 V AC / Δ / 60 Hz / 2,3 bar
• Belt drive with applicable belt drive safety cover
• Conveniently located control box with Star/Delta starter,
with motor phase control, overload protection
and over-temperature protection

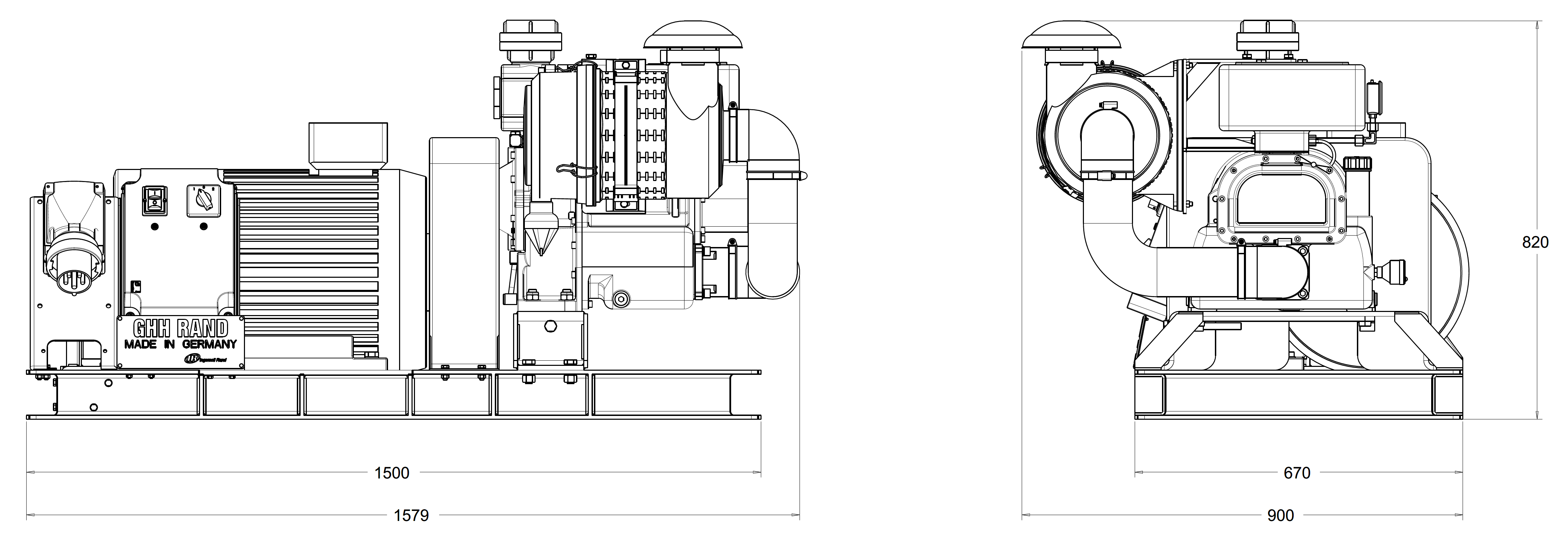

• Assembled on FEA calculated robust,
powder-coated steel frameю Estimated total weight 500kg.
• High efficiency SILOL® lubricant extending oil change
interval
• CG600 EP LITE solutions are non-EU compliant.
Individual components (airend, motor, control box,
cables) are CE compliant.
