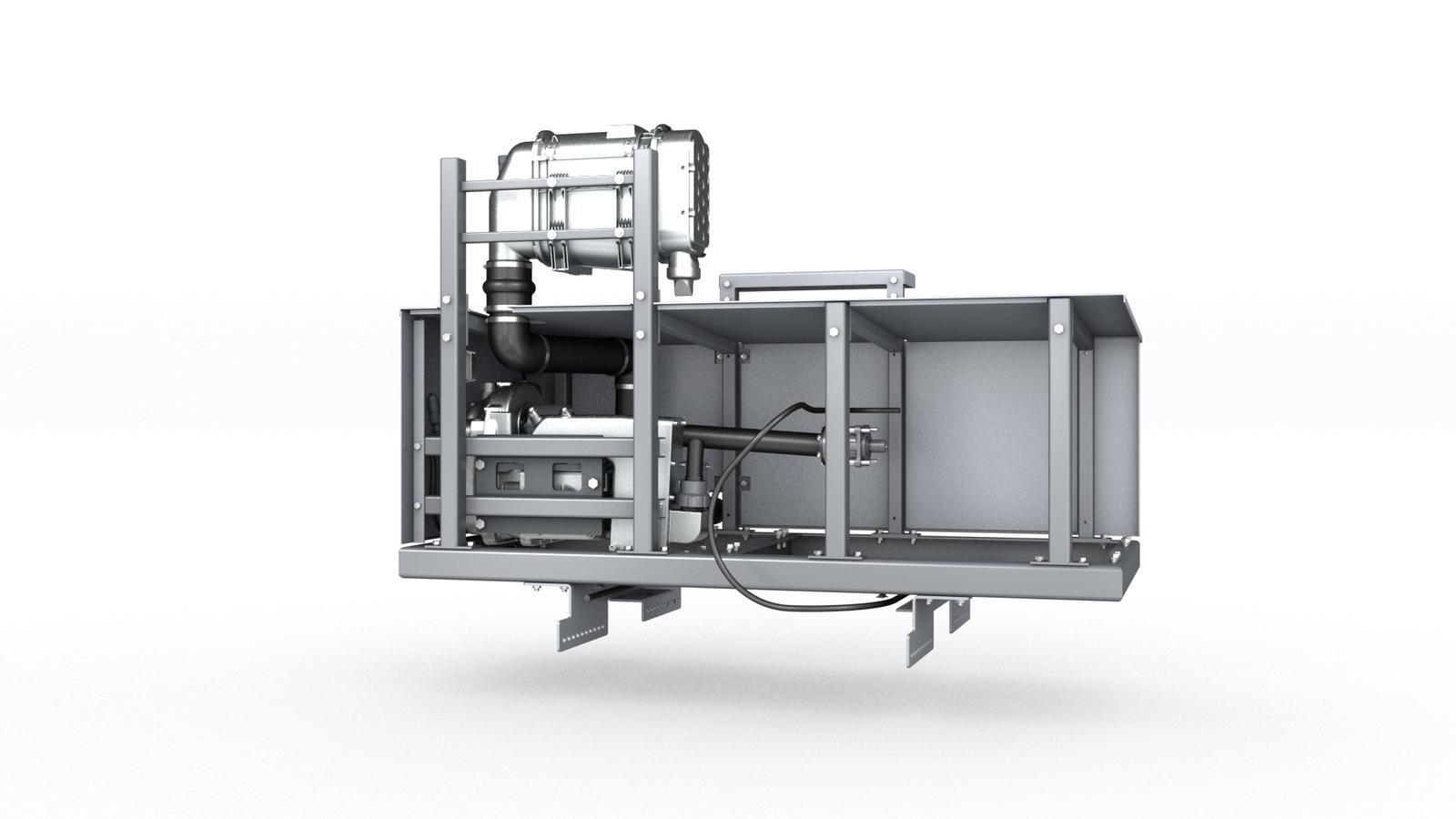

The GHH RAND CS580 BEV-PACK is a revolutionary zero-emission electric-driven air compressor module tailored for battery-electric trucks in the dry bulk tanker market. Designed to meet the energy-sensitive demands of BEVs, it delivers high performance with minimal battery drain, enabling zero-emission pneumatic operations without compromising range or reliability.
Specification | Details |
|---|---|

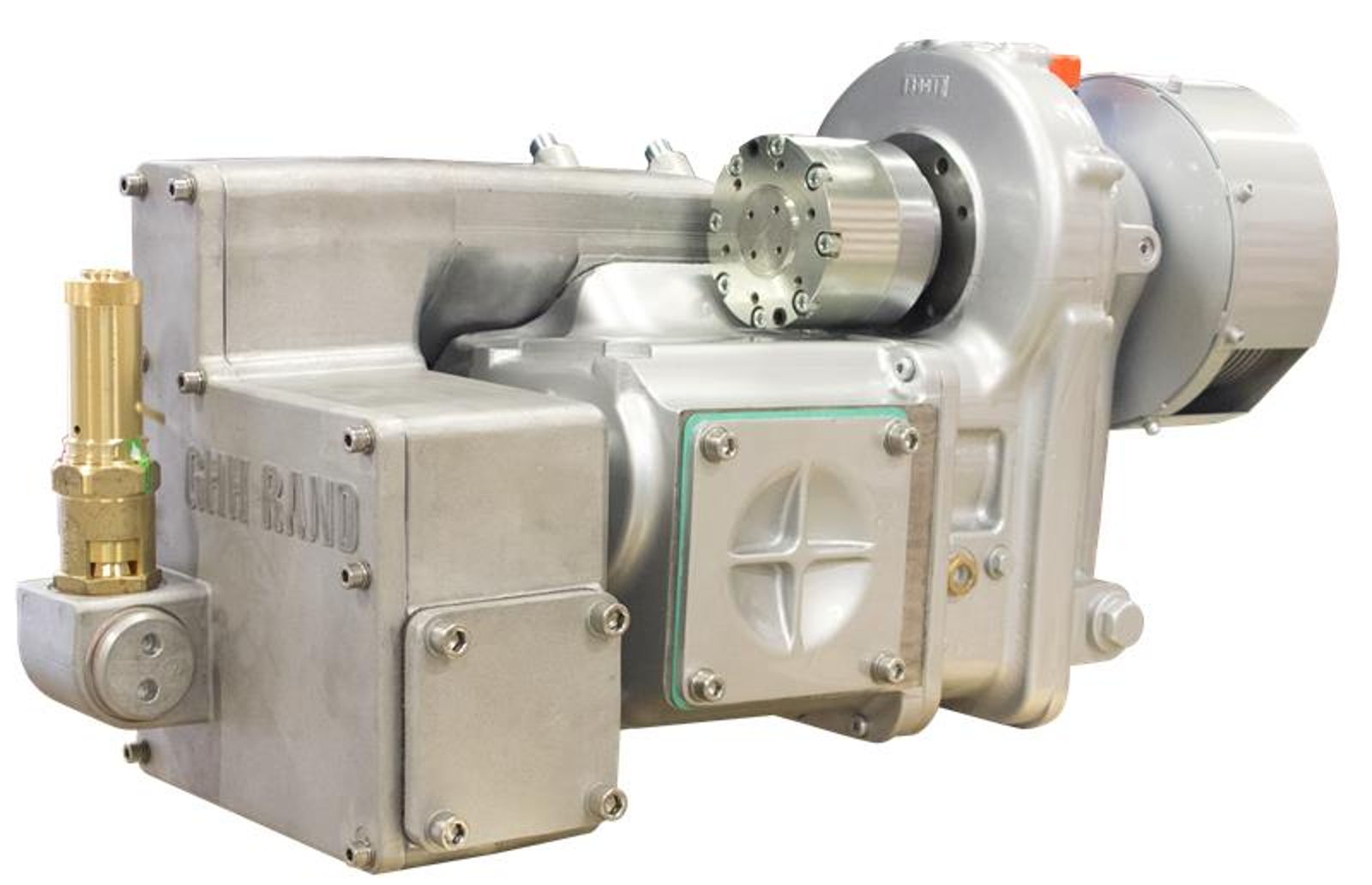

Compressor Model | SILU® CS90R2L |
Suction Volume | Up to 570 m³/h |
Max. Discharge Pressure | 2.5 bar (g) |
Dimensions (L × W × H) | 1800 mm × 675 mm × 690/1135 mm |
Weight (GHH Rand scope) | 300 kg |
Noise Reduction | Acoustic enclosure for quiet operation |
Cooling System | External oil cooler for optimum performance |
100% Electric Drive
Operates directly from the truck’s battery system—no diesel engine or PTO required.
Compact & Lightweight
Design Engineered to fit within EV chassis constraints, preserving payload and maximizing range.
High Performance
Delivers up to 2.5 bar pressure and 570 m³/hr suction volume—ideal for cement and dry bulk discharge.
Plug & Play Installation
Easily integrates with truck systems without chassis modifications.
Durability & Acoustic Enclosure
Advanced sound insulation and robust construction ensure quiet, reliable operation in harsh environments.
Energy Efficiency
Low specific power consumption reduces battery drain and extends vehicle range.
Optimized Ancillaries
Supporting components are designed for smooth airflow and minimal pressure loss, enhancing overall system efficiency.
Advanced Cooling System
Integrated oil coolers maintain optimal airend performance and reliability.

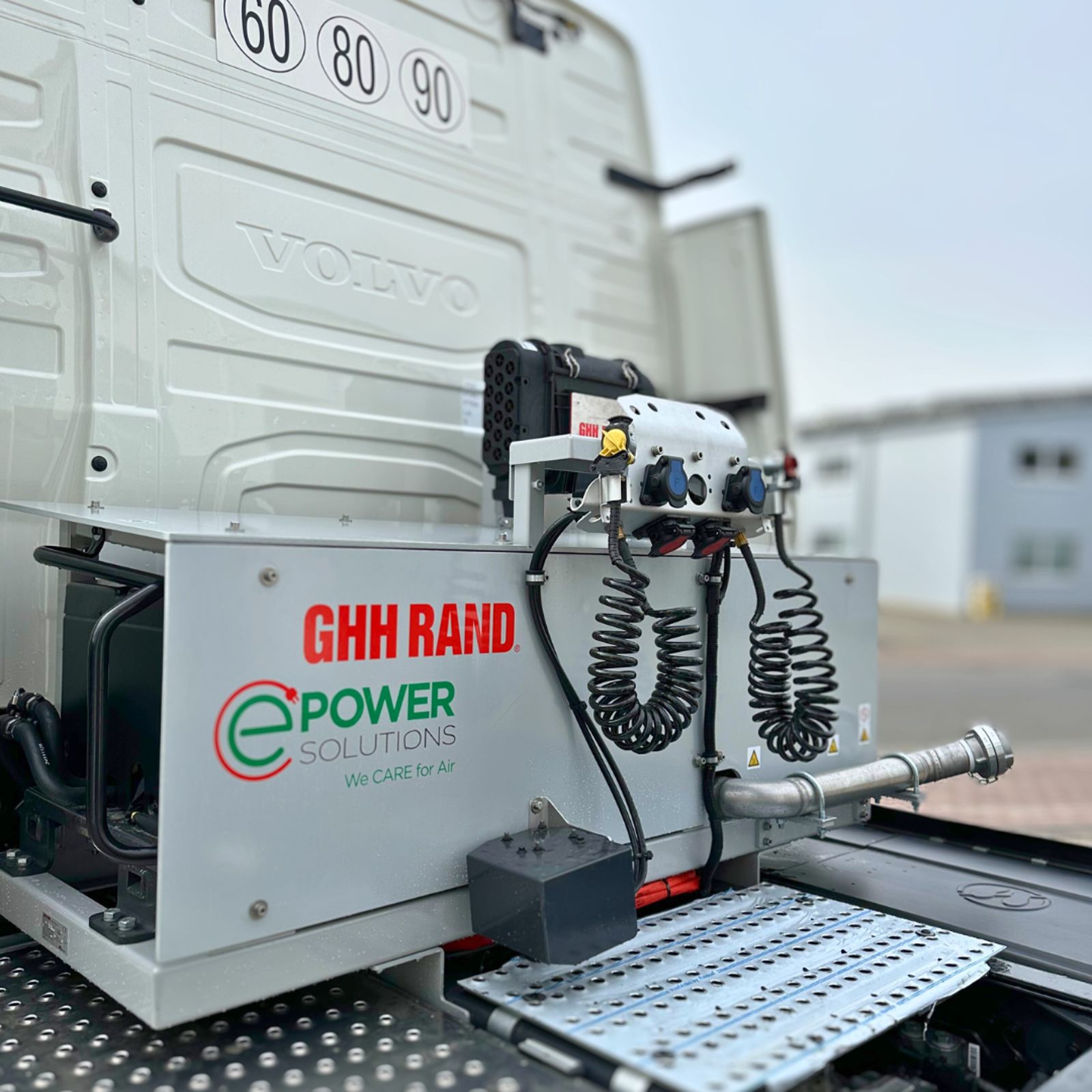

Ideal for dry bulk tanker discharge operations, the CS580 BEV-PACK is a proven solution for electric trucks in the construction and logistics sectors. Successfully deployed on a Volvo FH Electric truck by Garage Croix de Bretagne Groupe Seguin Trucks, it enables pneumatic unloading and tipping with zero emissions, quiet operation, and full compatibility with EV architecture.
📘 Real-World Success: Garage Croix de Bretagne Groupe Seguin Trucks with CS580 BEV-PACK
The CS580 BEV-PACK proved its durability and quiet operation in demanding real-world conditions, making it ideal for urban and residential environments. This successful deployment not only met sustainability goals but also demonstrated that green technology can match—and even exceed—traditional performance standards.

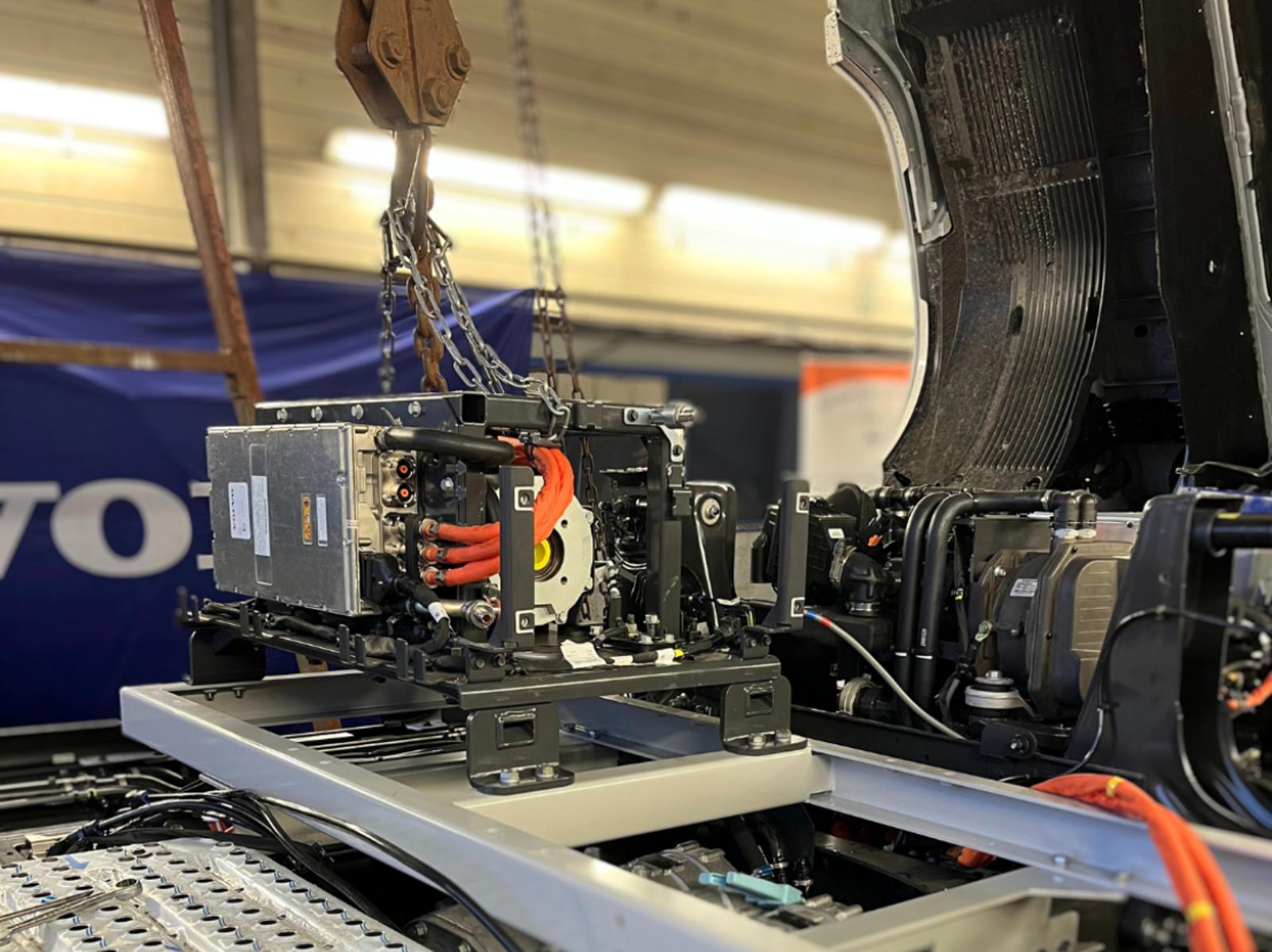

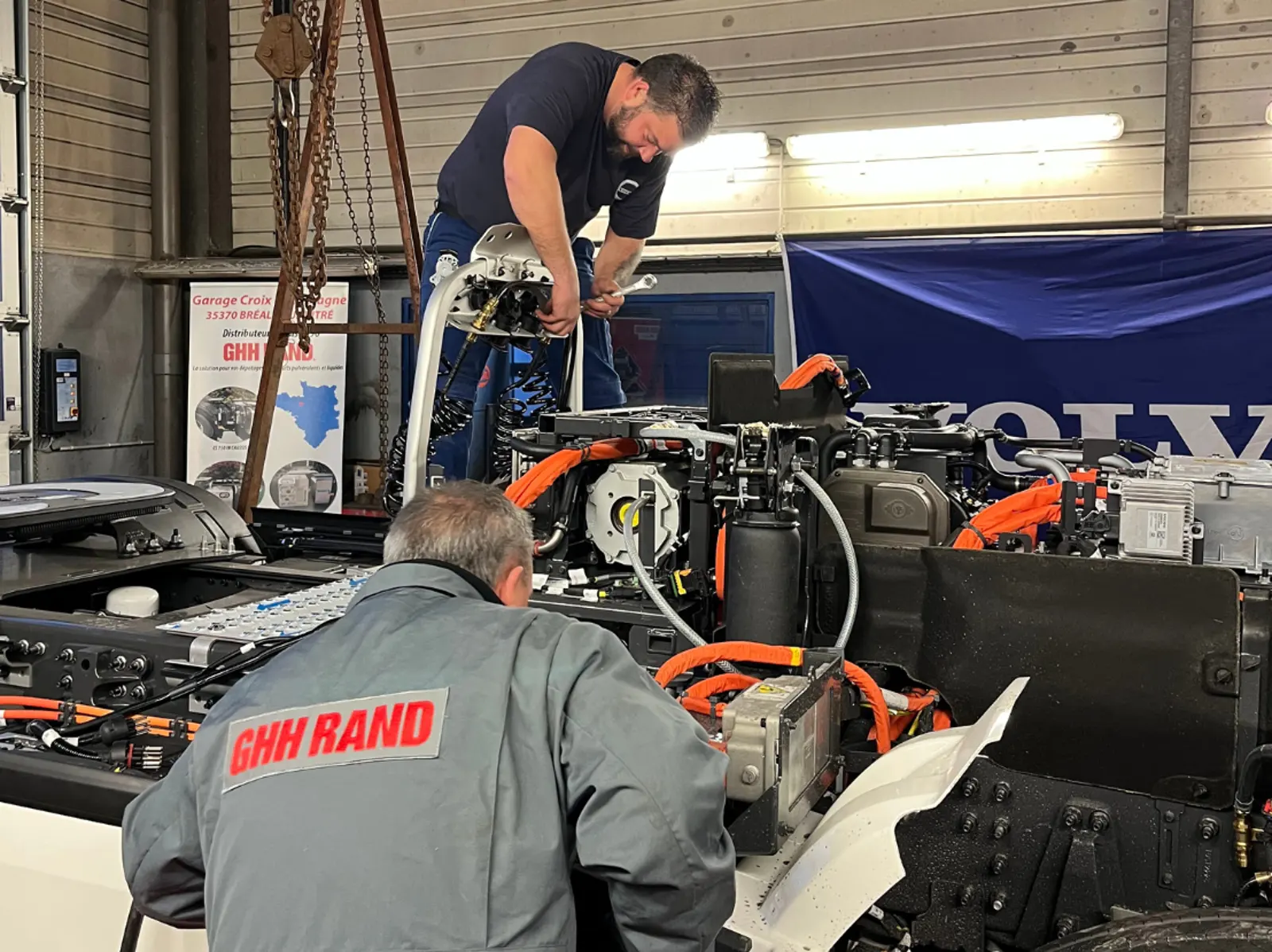

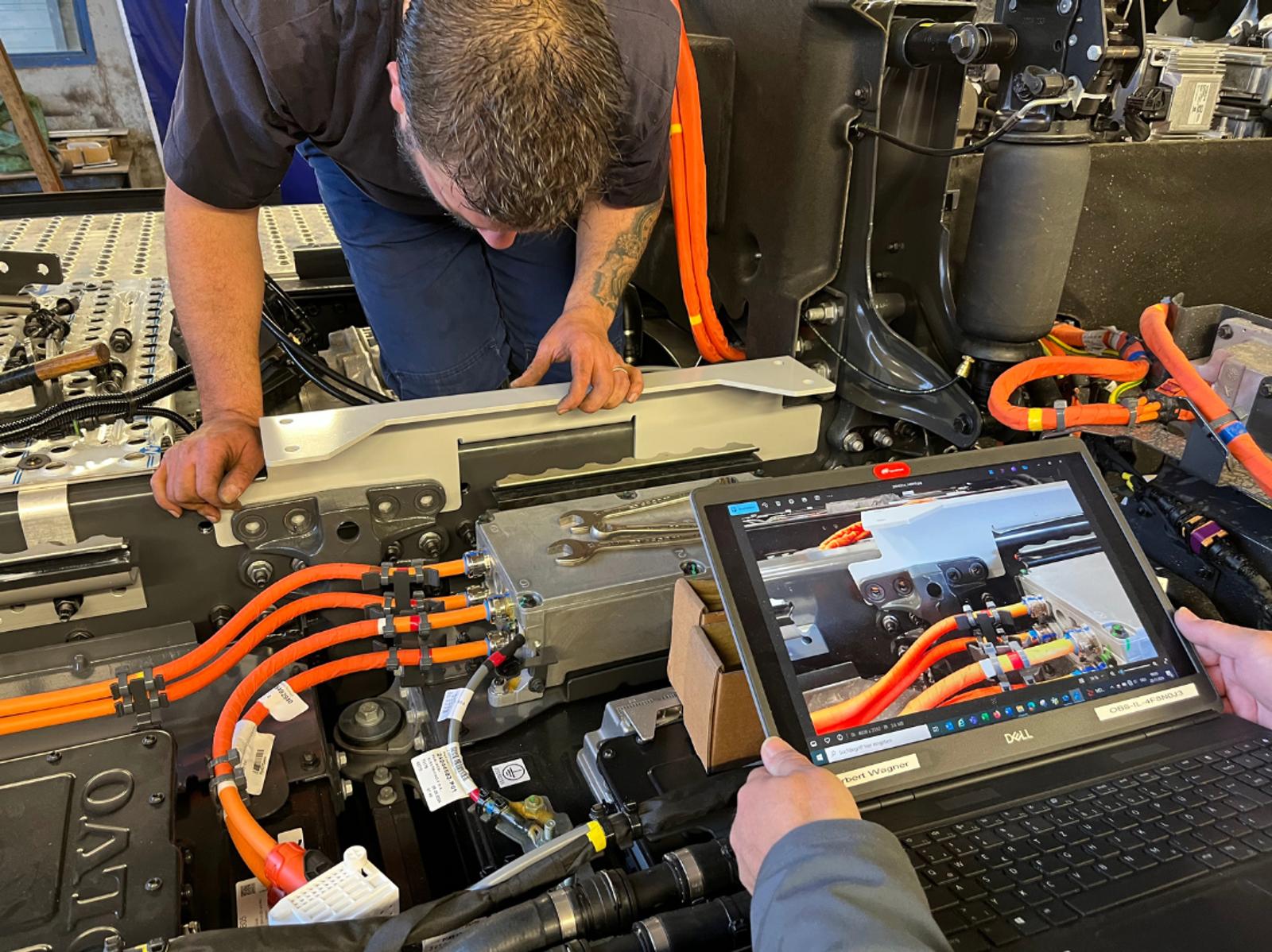

Installation examples
